Heat pump system

Function

[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

FEATURE

Achieves high system efficiency under cooling operation, with the use of expansion valve same as traditional air conditioners.

Under heating operation, the heat pump system draws up heat from outside air, and provides heat to the cabin. A unique valve control system controls dehumidifying heating, preventing windows to be fogged up, and maintain heating. Even when the outside temperature is very low, able to keep sufficient heating with the use of high performance water heater.

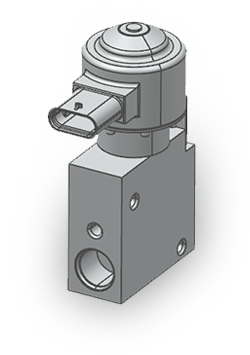

EXV(Electric Expansion Valve)

Function: By inputting a pulse signal, the high temperature and high pressure liquid refrigerant is decompressed and expanded. Feature: Achieves both high reliability and low cost to adapt the step motor without an electronic circuit

Function:
By inputting a pulse signal, the high temperature and high pressure liquid refrigerant is decompressed and expanded.

Feature:
Achieves both high reliability and low cost to adapt the step motor without an electronic circuit

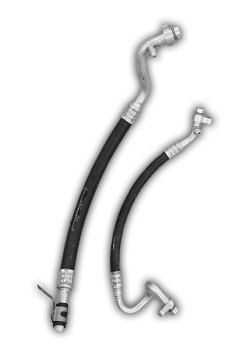

AC Pipe

Function: It is a pipe that allows the refrigerant to flow

Function:
It is a pipe that allows the refrigerant to flow

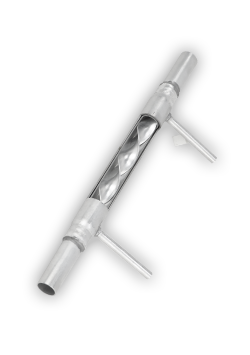

IHX

Function: To achieve high cooler performance by internally exchanging heat between high and low temperature refrigerant with integrated double PIPE. Feature: High performance Inner Heat Exchange (IHX) by using spiral FIN

Function:
To achieve high cooler performance by internally exchanging heat between high and low temperature refrigerant with integrated double PIPE.

Feature:
High performance Inner Heat Exchange (IHX) by using spiral FIN

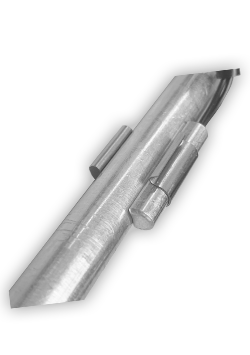

T-OHX Sensor

Function: Mounted on the surface of refrigerant pipe and measures the refrigerant temperature. Feature: Small size and high accuracy

Function:
Mounted on the surface of refrigerant pipe and measures the refrigerant temperature.

Feature:
Small size and high accuracy

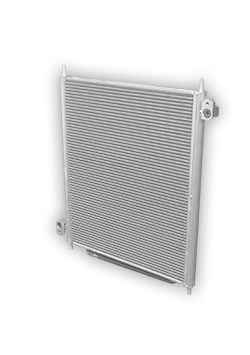

OHX(Outside Heat Exchanger)

Function: It functions as a condenser during cooling and as an evaporator during heating. Feature: Improves refrigerant distribution and achieves both high performance and low pressure loss

Function:
It functions as a condenser during cooling and as an evaporator during heating.

Feature:
Improves refrigerant distribution and achieves both high performance and low pressure loss

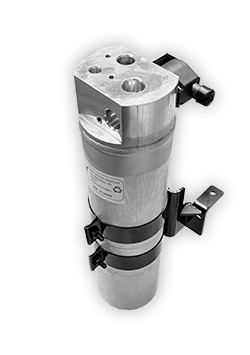

MFR(Multi Function Reciever)

Function: It functions as a liquid tank during cooling and as an accumulator during heating. Feature: Functional fusion of liquid tank and accumulator

Function:
It functions as a liquid tank during cooling and as an accumulator during heating.

Feature:
Functional fusion of liquid tank and accumulator

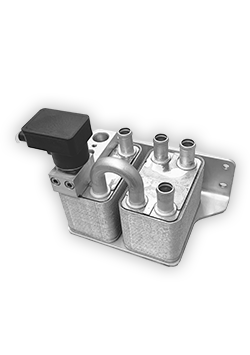

Chiller Unit (Refrigerant - Water)

Function: Combines a refrigerant chiller for battery cooling and a water chiller for battery heating. Feature: Small size, low pressure loss, high performance

Function:
Combines a refrigerant chiller for battery cooling and a water chiller for battery heating.

Feature:
Small size, low pressure loss, high performance

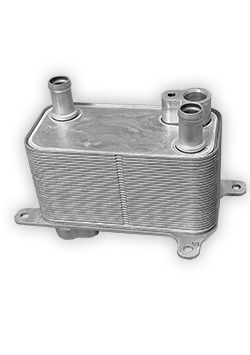

Water Condenser

Function: Warm the water with the heat of the refrigerant Feature: Laminated plate heat exchanger Small size, low pressure loss, high performance
